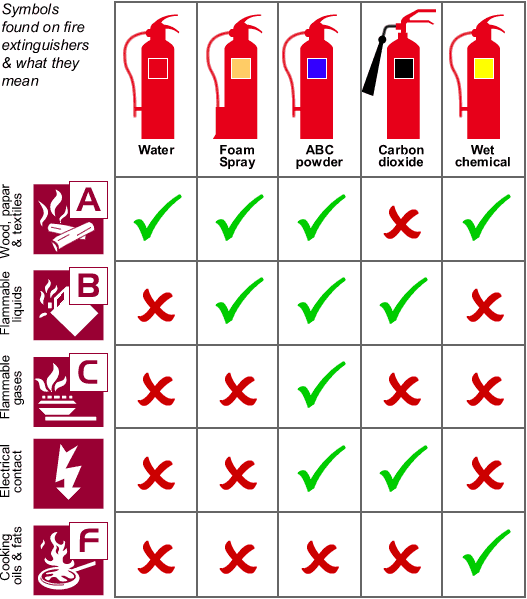

Extinguisher Guide
Guide
Water
Powder
Special
Guide
Type 9ltr Water S/P 9L Water C/O
Capacity (ltr) 9
Fire rating 21A 21A
Height (mm) 600 600
Cylinder diameter (mm) 189 189
Overall width (mm) 300 330
Filled weight (kg) 14.18 14.87
Range of throw (m) >4 >4
Duration of discharge (secs) 50 60
Working pressure (at 20° C) 15 bar 10 bar
Temperature range (° C) 0 to 60 0 to 60
BS EN3 approved Yes Yes
BS 7937 approved 0
MED (approval pending) 1
Foam
Ideal for multi-risk situations. free-burning materials such as wood and paper as well as flammable liquids can be tackled very effectively.
Ideal for multi-risk situations. free-burning materials such as wood and paper as well as flammable liquids can be tackled very effectively.
High grade brass head assembly ensures reliability and optimises efficiency.
Coated steel levers built to withstand the hardest knocks.
15 bar working pressure for maximum fire fighting performance gives greater application reach, helping to ensure user safety.
Long drawn high grade steel body shell for optimum strength.
Polyester external coating adds extra protection to withstand extreme temperatures, dirty environments and UV degradation.
Polyethylene internal lining safeguards against corrosion.
Precision built mechanical pressure gauge provides a very accurate indication of extinguisher's pressure status.
High quality application hose with plated brass ferrules.*
Robust protective plastic skirt.*
All spray models have passed the BS EN3 35kV di-electric test.
Safe to use in close proximity to electrical equipment.
Foam extinguishers
Technical Details
Carbon Dioxide
Suitable for use on flammable liquids and electrical fires, both models contain a non-toxic, clean gas. When used they leave little residue and so are ideal for offices and workshops because damage to equipment is kept to a minimum.
High grade brass head assembly ensures reliability and optimises efficiency.
Coated steel levers built to withstand the hardest knocks.
56 bar working pressure at 20oC for maximum fire fighting performance.
Polyester external coating adds extra protection to withstand extreme temperatures, dirty environments and UV degradation.
CO2 Extinguishers
Type 2 Kg CO2 Squat Aluminium 5 Kg CO2 Aluminium 2Kg CO2 Steel 5Kg CO2 Steel
Capacity (kg) 2 5 2 5
Fire rating 34B 70B 34B 55B
Height (mm) 490 800 600 910
Cylinder diameter (mm) 117 152 102 140
Overall width (mm) 180 290 115 220
Filled weight (kg) 4.91 11.43 7.5 15
Range of throw (m) >4 >4 >4 >4
Duration of discharge (secs) 8 14 13 24
Working pressure (at 20° C) 56 bar 56 bar 56 bar 56 bar
Temperature range (° C) -20 to 60 -20 to 60 -20 to 60 -20 to 60
BS EN3 approved Yes Yes Yes Yes
MED (approval pending) 1 1
ABC Dry Powder
Powder extinguishers are extremely versatile; suitable for use on free-burning materials, flammable liquids and flammable gases. Because of the non-conductivity of dry powder they are also ideal for electrical fires.
High grade brass head assembly ensures reliability and optimises efficiency.
Coated steel levers built to withstand the hardest knocks.
15 bar working pressure for maximum fire fighting performance gives greater application reach ensuring user safety.
Long drawn high grade steel body shell for optimum strength.
The Monnex extinguisher contains a high performance powder suitable for high risk areas.
Polyester external coating adds extra protection to withstand extreme temperatures, dirty environments and UV degradation.
Precision built mechanical pressure gauge provides a very accurate indication of extinguisher's pressure status.
High quality application hose with plated brass ferrules*. Robust protective plastic skirt.*
*Excludes 1kg and 2kg models.
Powder Extinguishers
Type 1Kg ABC Powder S/P 2Kg ABC Powder S/P 4Kg ABC Powder S/P 6Kg ABC Powder S/P 9Kg ABC Powder S/P 9Kg Monnex Powder S/P
Capacity (kg) 1 2 4 6 9 9
Fire rating 8A 55B 13A 89B 21A 113B 34A 233B 43A 233B 233B
Height (mm) 340 370 430 565 600 610
Cylinder diameter (mm) 80 112 160 160 189 189
Overall width (mm) 135 150 310 290 300 300
Filled weight (kg) 1.7 3.62 6.8 9.91 14.1 14.5
Range of throw (m) >2 >2 >4 >4 >4 >4
Duration of discharge (secs) 9 10 12 15 15 18
Working pressure (at 20° C) 15 bar 15 bar 15 bar 15 bar 15 bar 15 bar
Temperature range (° C) -30 to 60 -30 to 60 -30 to 60 -30 to 60 -30 to 60 -20 to 60
BS EN3 approved Yes Yes Yes Yes Yes Yes
MED (approval pending) 1 1
Type 9ltr Water S/P 9L Water C/O
Capacity (ltr) 9
Fire rating 21A 21A
Height (mm) 600 600
Cylinder diameter (mm) 189 189
Overall width (mm) 300 330
Filled weight (kg) 14.18 14.87
Range of throw (m) >4 >4
Duration of discharge (secs) 50 60
Working pressure (at 20° C) 15 bar 10 bar
Temperature range (° C) 0 to 60 0 to 60
BS EN3 approved Yes Yes
BS 7937 approved 0
MED (approval pending) 1
